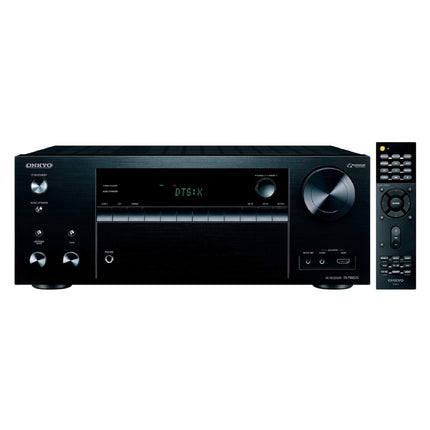

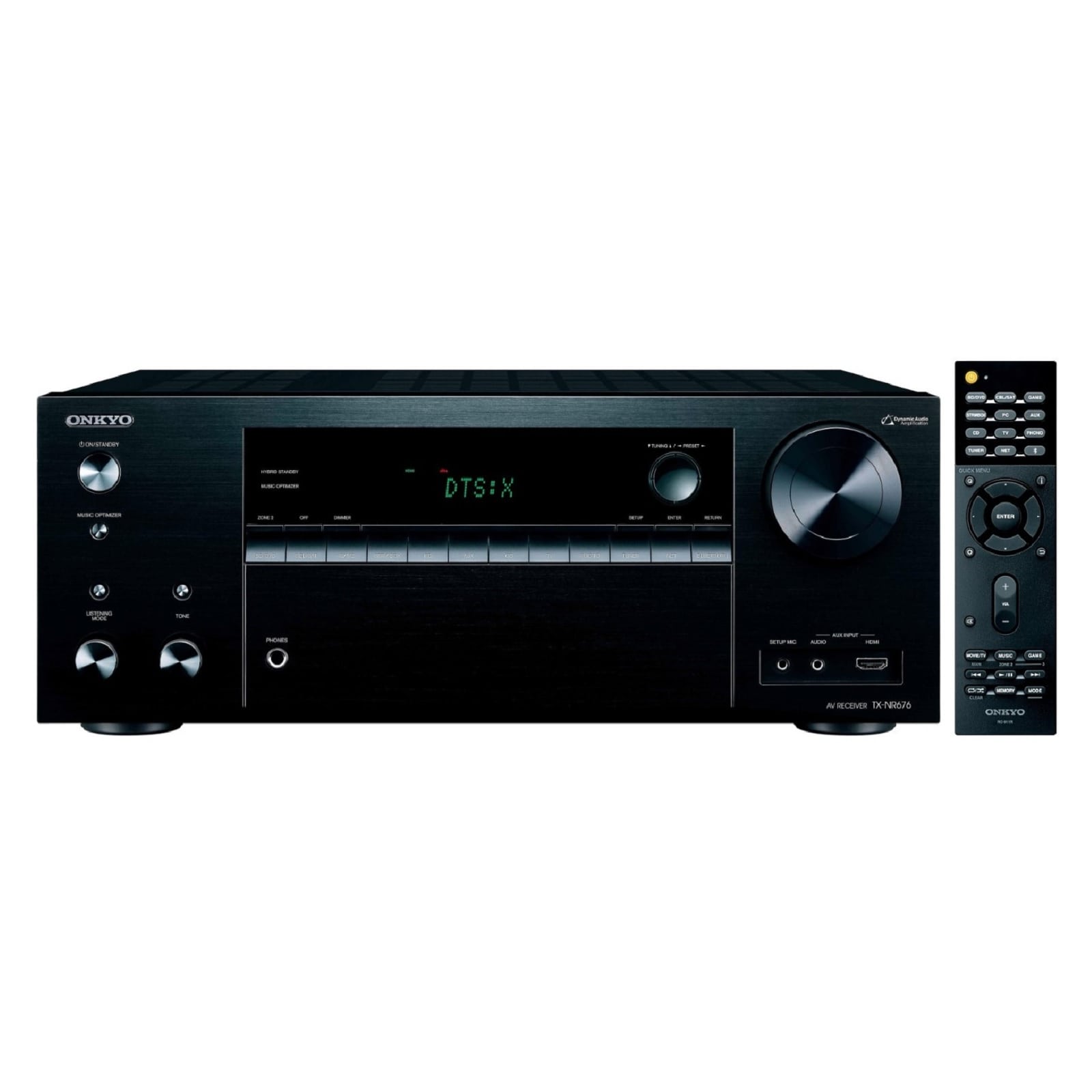

Onkyo TX-NR676 7.2-channel home theater receiver with Wi-Fi, Bluetooth
Onkyo TX-NR676
7.2-channel home theater receiver with Wi-Fi®, Bluetooth®, Dolby Atmos®, and DTS:X™
17-1/8"W x 6-13/16"H x 15-9/16"D
Weight: 22 lbs.
Includes: Onkyo TX-NR676, Remote, Manual, AM loop antenna, FM wire antenna
Power and Processing:
- 7-channel amplifier
- 100 watts per channel into 8 ohms (20-20,000 Hz) at .08% THD, with 2 channels driven
- Dolby® and DTS® surround sound decoding
- Dolby Atmos® processing for use with in-ceiling or "height" speakers for more enveloping surround sound
- DTS:X™ for an immersive, 3-dimensional soundstage
- Advanced AccuEQ automatic speaker calibration optimizes your system's sound for your room (microphone included)
- New AccuReflex technology aligns phase of up-firing "height" speakers with the sound coming directly from your other speakers
- Digital and Streaming Music Options:
- built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services
- Includes support for Pandora®, Spotify®, TIDAL, Deezer, and TuneIn (subscription required for some services)
- Chromecast built-in for streaming music from the cloud with compatible mobile apps (via firmware update)
- built-in Bluetooth for wireless music streaming from a compatible phone, tablet, or computer
- Apple® AirPlay® for streaming music from an iPhone®, iPad®, iPod touch®, or computer running iTunes®
- plays high-resolution digital music files via USB storage device or a networked computer (PCM-based files up to 24-bit/192kHz resolution)
- Plays DSD files (up to 5.6 MHz) from network and USB storage devices
- DTS Play-Fi® available via future firmware update
Multi-room Audio:
- Dual-room/dual-source output
- Powered stereo audio output for 2nd room
- Using powered 2nd-room output allows 5.2-channel home theater in main room
- Line-level 2nd-room output for use with a separate amplifier or powered speakers
- Audio Performance Features:
- high-current amplifier design
- 32-bit/384kHz Asahi Kasei AK4458 digital-to-analog converter for clear sound from digital sources
- Music Optimizer function enhances the sound quality of compressed music files and Bluetooth streams
- Bi-amp capability with compatible front speakers by reassigning surround back channels

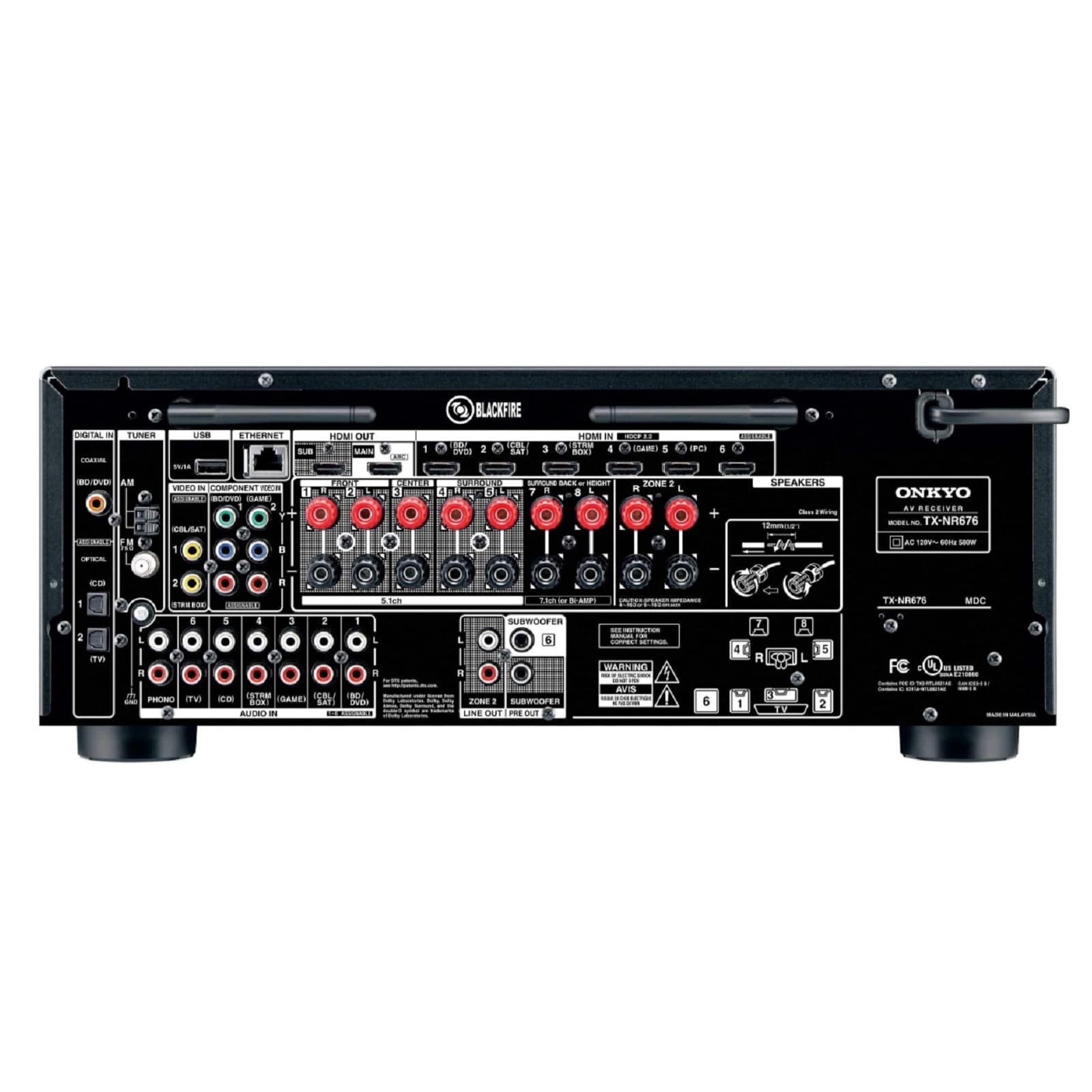

- Connections:
- HDMI audio/video switching: 7 in, 2 out (includes front-panel input)
- HDCP 2.2 technology ensures compatibility with 4K Ultra HD sources and TVs (all HDMI inputs and monitor output)
- HDR-compatible for extended picture contrast and brightness with compatible 4K TVs and HDR-encoded content
- supports HDR 10 and Dolby Vision
- 2 component video inputs
- 2 composite video inputs
- digital audio inputs: 2 optical and 1 coaxial
- 6 analog stereo audio inputs
- phono input for direct connection of a turntable
- preamp outputs for 2 powered subwoofers
- rear-panel USB port for audio playback from USB storage devices
- Ethernet port for network connection
- outputs for 9 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Zone 2 L/R)
- Receiver can power a maximum of seven channels at once
General Features:
- Free Onkyo Controller app lets you use your Apple or Android™ device as a Wi-Fi remote
- 4K/60p and 3D video pass-through
- HDMI standby pass-through allows access to all HDMI connected devices without having to power on the receiver
- Phase-Matching Bass optimizes low frequencies to preserve clarity with vocals and movie dialogue
- 40 AM/FM presets
- MFR # TX-NR676
