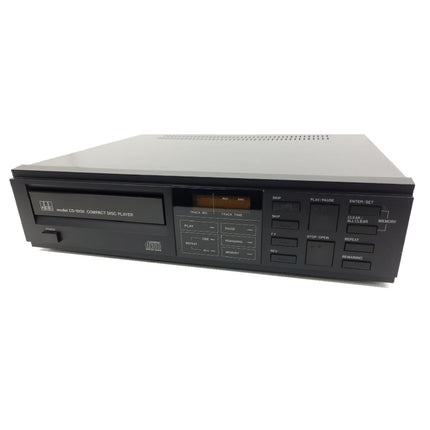

ADC CD-100X Single Disc CD Player 1985
REFURBISHED - SERVICED - RESTORED
FREE SHIPPING - 90 DAY WARRANTY
Condition
Fully serviced and tested. Restored to excellent condition.
Includes
ADC CD-100X Single Disc CD Player 1985, Audio Cables
MFR Year: 1985
Specs
Frequency response: 5 - 20 kHz ±0.5 dB
Total Harmonic Distortion: 0.004%
Dynamic range: 95 dB
Output level: 2 V rms
Signal-to-noise ratio: -90 dB V
Channel separation: 90 dB at 1 kHz
Output impedance: 600 Ω
Internal system
Optical pickup: 3-beam laser
D/A conversion: 16-bit linear
Filter: Seventh order passive filter
Error correction: CIRC dual error correction system
Total Harmonic Distortion: 0.004%
Dynamic range: 95 dB
Output level: 2 V rms
Signal-to-noise ratio: -90 dB V
Channel separation: 90 dB at 1 kHz
Output impedance: 600 Ω
Internal system
Optical pickup: 3-beam laser
D/A conversion: 16-bit linear
Filter: Seventh order passive filter
Error correction: CIRC dual error correction system
Functions
Music search: SKIP buttons
Fast forward/reverse: FF and REV buttons
Remaining time display: REMAINING key
program memory function: 16 selections, random
Repeat: of one progral, or all contents
Disc loading: Motor driven, horizontal loading
General
power requirements: 100 - 120 V, 220 - 240 V, 50/60 Hz
Power consumption: 12 W
Dimensions (W x H x D): 341 x 88 x 293 mm (13-7/16" x 3-7/16" - 11-9/16")
Weight: 3.3 kg (7 lbs. 5 oz)
