Description

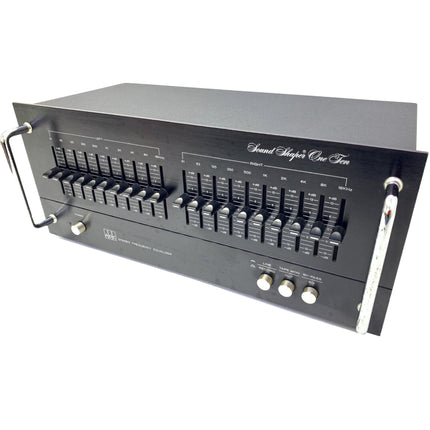

The ADC SS-110 is a graphic equalizer with adjustable frequency characteristics. This unit is a left and right independent type, and the range of 10 bands can be adjusted by ± 12 db variable range.
REFURBISHED - SERVICED - RESTORED
FREE SHIPPING - 90 DAY WARRANTY
Condition
Cleaned, tested, and confirmed to be fully functional. Restored to excellent condition.
Type: Graphic equalizer
Variable range: ± 12 dB
Frequency characteristic: 5 Hz ~ 100 kHz + 0.5 -1.0 dB
Control frequency: 31, 62, 125, 250, 500, 1k, 2k, 4k, 8k, 16 kHz
Gain: 0 (± 1 dB)
Output level: Maximum 10 V RMS at 10k Ω load
Total harmonic distortion factor: 0.018% (20 Hz to 20 kHz at 1 V output)
Cross modulation distortion factor: 0.018% (at 1 v output)
Hum, noise 95 dB (when 1 V Output / Slide Knob Flat)
Output impedance: 100 Ω (1 kHz)
Input impedance: 75k Ω

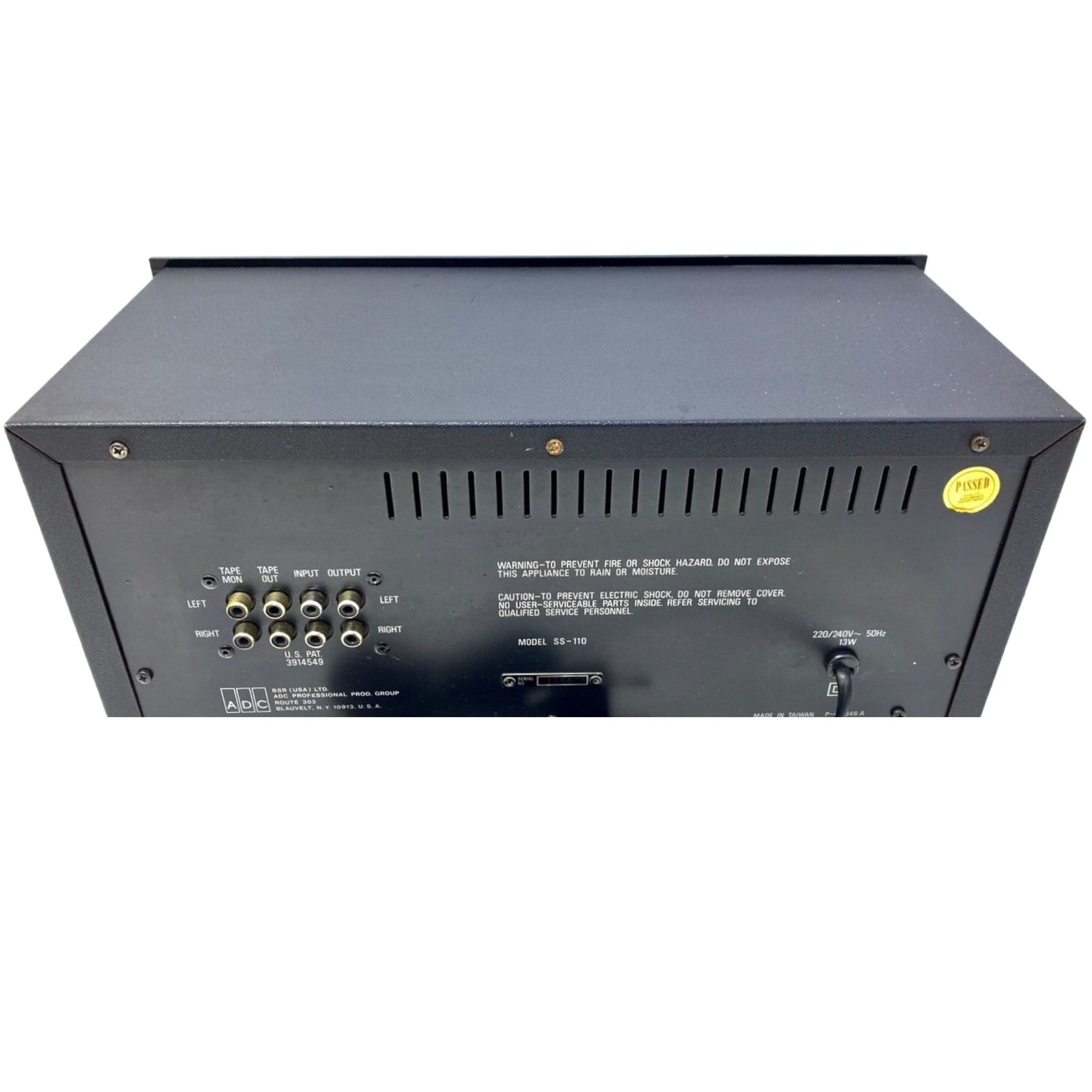

Input terminal Input : 2 pinjacks
Tape1 : 2 pin-jacks
Tape2 : Two pinjacks
Output terminal Output : 2 pinjacks
Tape1out : 2 pinjacks
Tape2out : 2 pinjacks
AC outlet 1 system, 200W maximum
Power supply voltage AC100V/120V/220V/240V, 50Hz/60Hz
Power consumption 15W
External dimensions Width 15" x Height 5" x Depth 6.75" inches
Weight 11 lbs.
