Description
REFURBISHED – SERVICED – TESTED
FREE SHIPPING – 90 DAY WARRANTY
Product Description

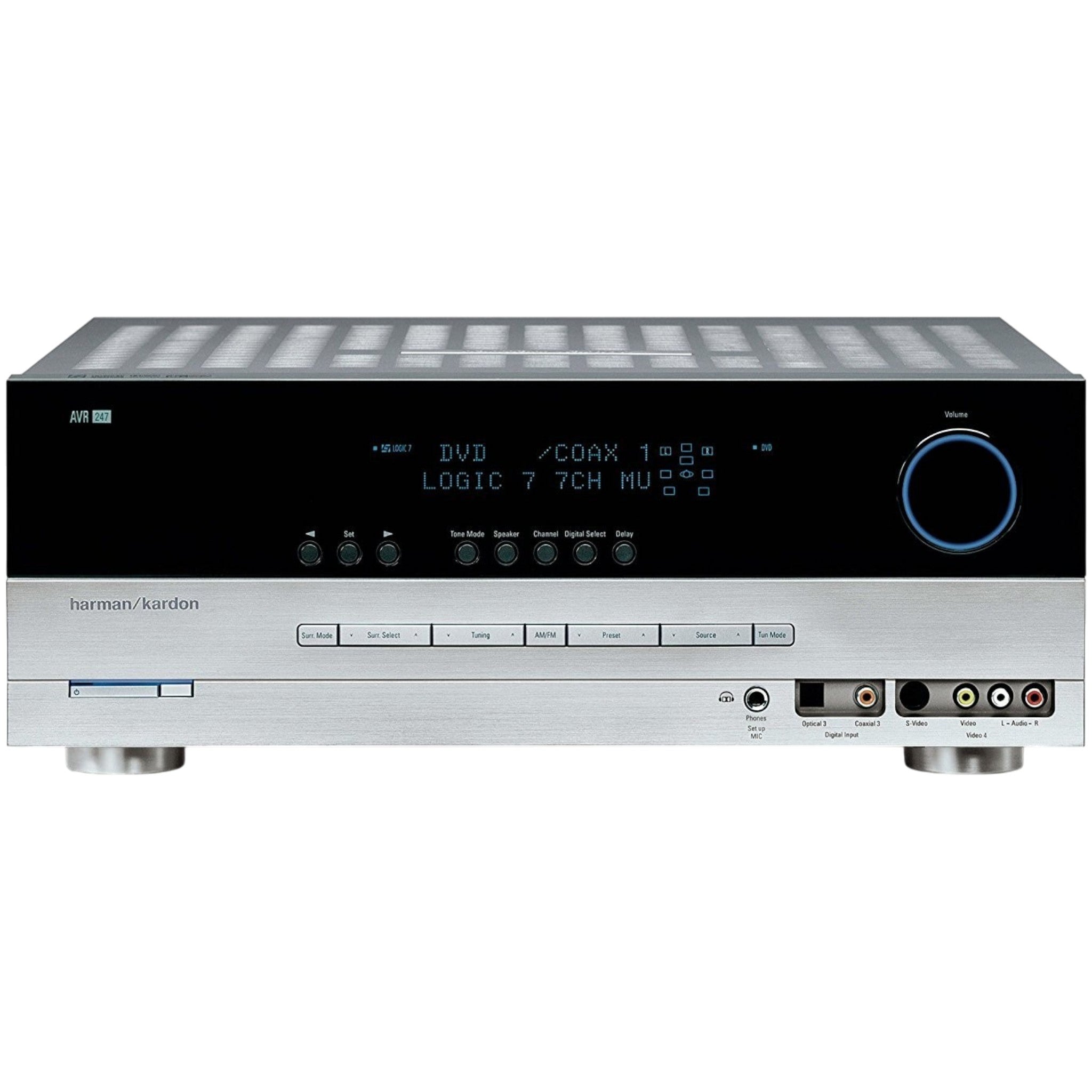

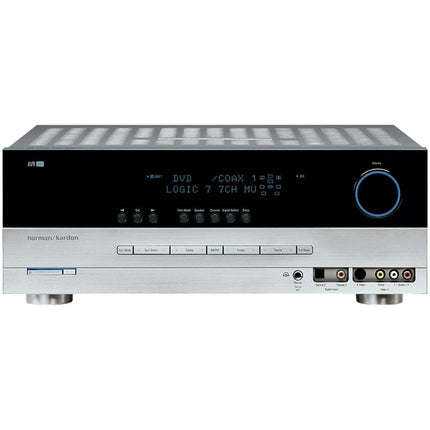

The Harman Kardon AVR 247 is a powerful 7.1-channel home theater receiver designed to deliver immersive surround sound and flexible connectivity for modern entertainment systems. Featuring HDMI switching with audio and video processing, Dolby Digital EX, DTS-ES, Logic 7 surround sound, and advanced video upconversion capabilities, the AVR 247 serves as the centerpiece of a high-performance home theater.
With seven discrete amplifier channels, high-current amplification, and Harman Kardon's renowned audio engineering, the AVR 247 provides dynamic, detailed sound for movies, music, gaming, and television. HDMI connectivity allows simplified system integration, while component video, digital audio, and analog inputs ensure compatibility with both modern and legacy source devices.
The built-in EzSet/EQ automatic speaker calibration system helps optimize speaker settings for your room, making setup quick and straightforward.
Key Features
• 7.1-channel surround sound receiver
• 50 watts x 7 channels (all channels driven)
• High-current amplifier design
• HDMI switching with audio and video processing
• 1080p HDMI pass-through
• Analog video to HDMI conversion
• Video upscaling to 720p HDMI output
• Dolby Digital EX decoding
• Dolby Pro Logic IIx processing
• DTS-ES Discrete and Matrix decoding
• DTS Neo:6 surround processing
• Harman Kardon Logic 7 surround sound
• Dolby Headphone technology
• EzSet/EQ automatic speaker calibration
• AM/FM tuner built in
• XM Ready capability
• Multiroom audio support
• On-screen display menu system
• Source input renaming
• A/V sync delay adjustment
• RS-232 upgrade port
Audio Features
• 7.1-channel surround processing
• 24-bit / 192kHz digital-to-analog conversion
• Twin-core Cirrus Logic DSP processing
• Quadruple crossover bass management
• Dual independent power supplies
• All-discrete amplifier circuitry
• Surround, stereo, DSP, and headphone listening modes
Video Features
• HDMI v1.2a connectivity
• 2 HDMI inputs
• 1 HDMI output
• 1080p HDMI pass-through
• DCDi by Faroudja video processing
• Composite video inputs
• S-Video inputs
• Component video inputs
• Analog-to-HDMI video conversion
• Upconversion to 720p HDMI output

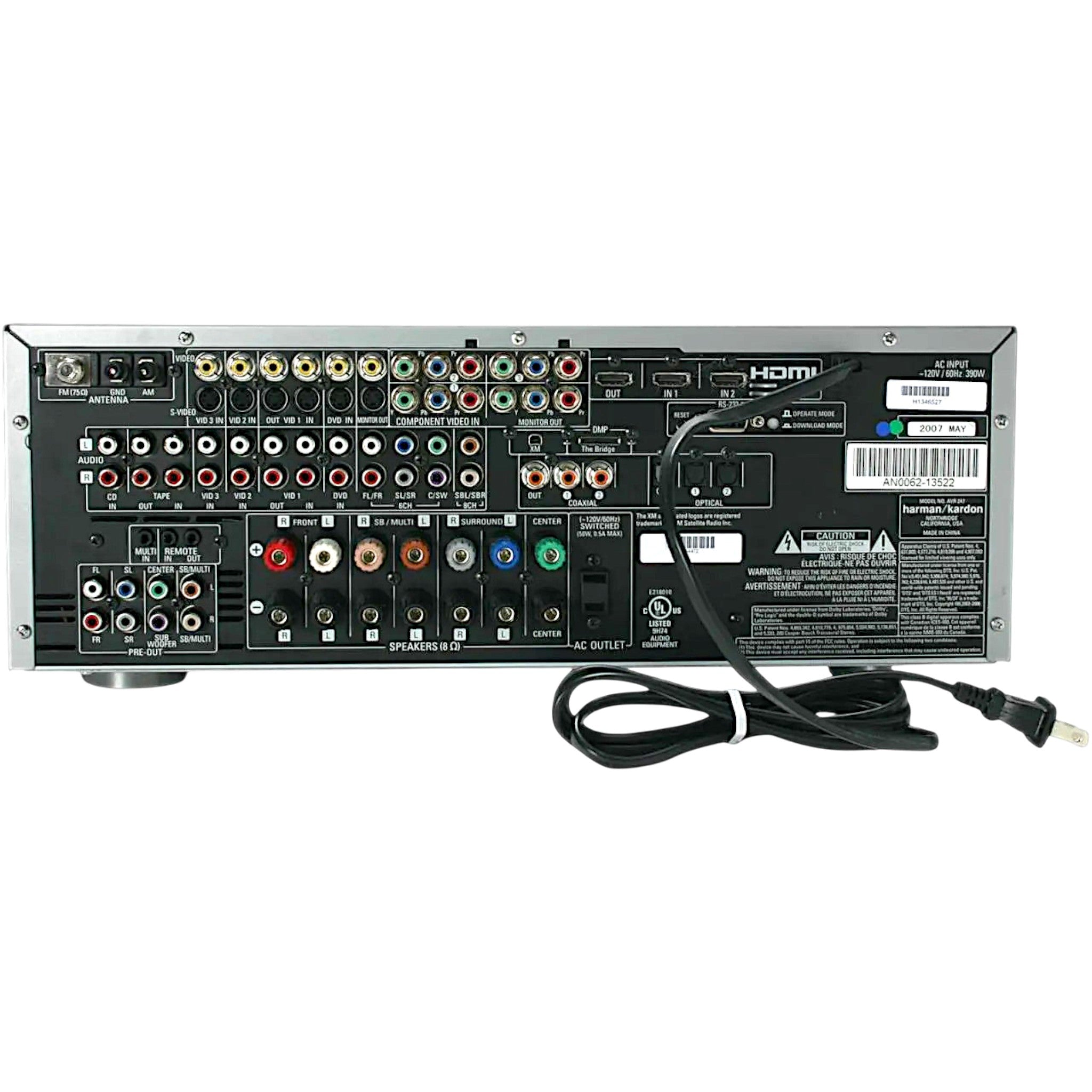

Connections
Inputs:
• 2 HDMI inputs
• 3 Component video inputs
• 2 Optical digital audio inputs
• 2 Coaxial digital audio inputs
• CD input
• Tape input
• DVD input
• Video 1, 2, 3, and 4 inputs
• 6/8-channel direct inputs
• AM antenna input
• FM antenna input
• XM antenna input
• The Bridge iPod dock input
Outputs:
• HDMI monitor output
• Component video monitor output
• Composite monitor output
• Optical digital output
• Coaxial digital output
• Tape output
• Video 1 output
• Subwoofer output
• 7.1 preamp outputs
• Headphone output
• Multiroom outputs
Supported Surround Formats
• Dolby Digital EX
• Dolby Pro Logic II
• Dolby Pro Logic IIx
• Dolby Virtual Speaker
• Dolby Headphone
• DTS
• DTS-ES Matrix
• DTS-ES Discrete
• DTS 96/24
• DTS Neo:6
• Logic 7
• Hall 1
• Hall 2
• Theater
• 5-Channel Stereo
• 7-Channel Stereo
Specifications
Power Output:
• 50 Watts x 7 Channels (8 Ohms, 20Hz–20kHz, <0.07% THD)
• 65 Watts x 2 Channels Stereo Mode
Frequency Response:
20Hz – 20kHz
HDMI Version:
1.2a
Video Processing:
Faroudja DCDi
Speaker Configuration:
5.1, 6.1, or 7.1 Channel
Multiroom Capability:
Yes
Dimensions & Weight
Width: 17.3 in
Height: 6.6 in
Depth: 15.0 in
Weight: 30.8 lbs
Condition
Professionally refurbished, cleaned, and tested. Any worn components have been replaced to ensure both optimal performance and appearance.
Warranty
This product includes a 90-Day Warranty from the date of delivery. If your item experiences issues related to functionality during normal use, we will provide a replacement or refund.
What's in the Box
• Harman Kardon AVR 247 receiver only
Questions & Answers
Q: Does the AVR 247 support HDMI?
A: Yes. It includes two HDMI inputs and one HDMI output with audio and video processing.
Q: Can this receiver power a 7.1 speaker system?
A: Yes. The AVR 247 features seven built-in amplifier channels and supports 5.1, 6.1, and 7.1 speaker configurations.
Q: Does it support modern surround sound formats?
A: Yes. It supports Dolby Digital EX, Dolby Pro Logic IIx, DTS-ES, DTS Neo:6, Logic 7, and several other surround processing modes.
Q: Can I connect older video equipment?
A: Yes. Composite, S-Video, and component video inputs are included for compatibility with legacy equipment.
