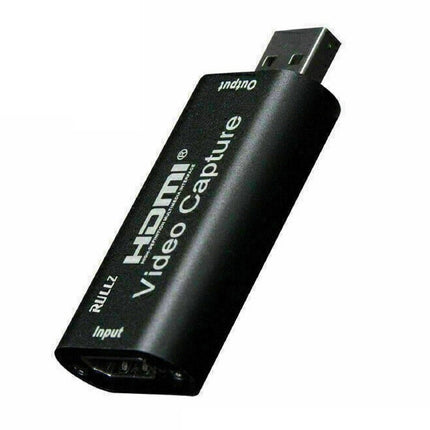

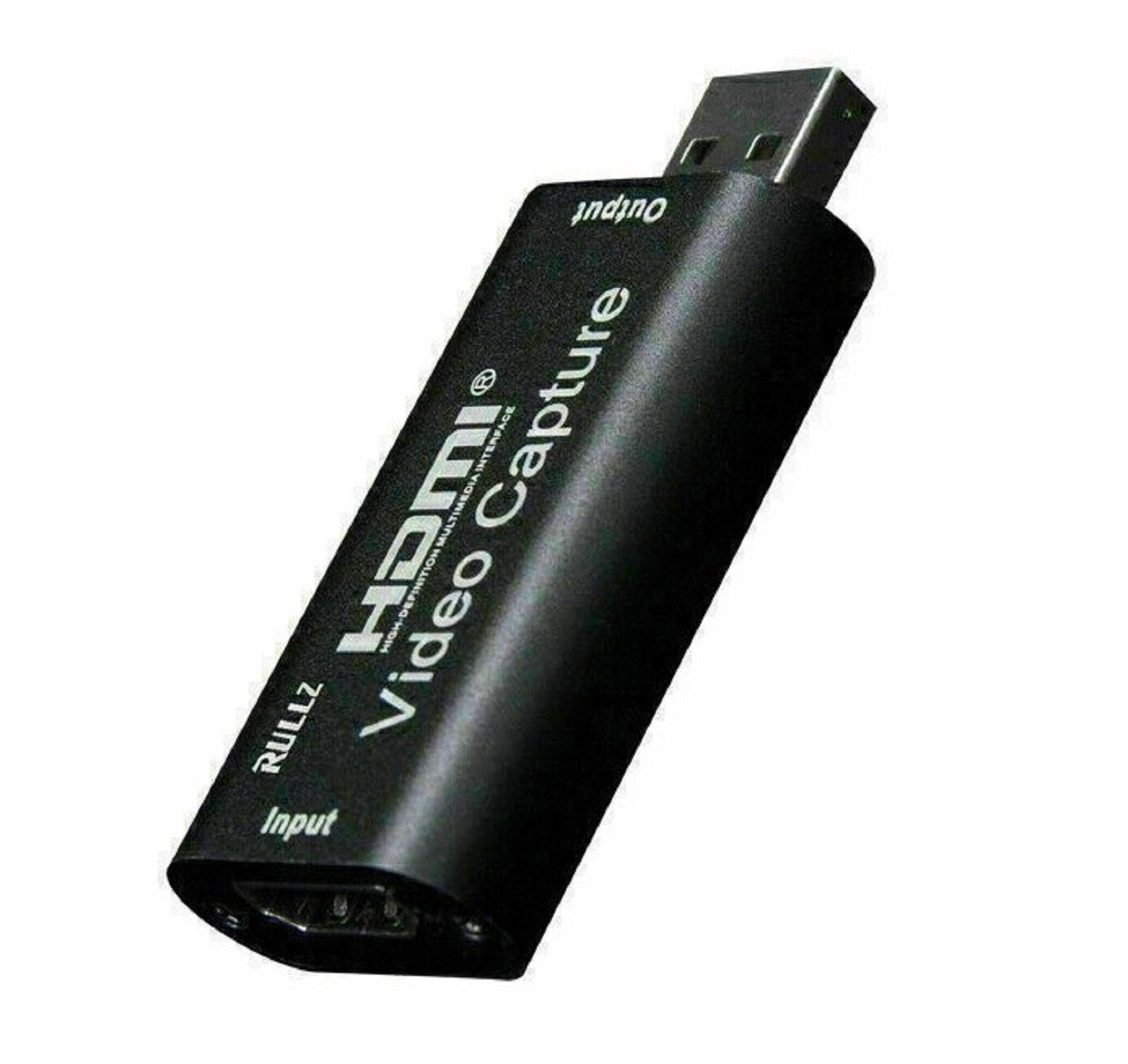

Product Introduction:
This USB capture card can capture HDMI video and HDMI audio at the same time, and can transmit audio and video signals to a computer or smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.
Features:
Support maximum input resolution up to 4K;
Support maximum output resolution up to 1080P;
Support 8/10/12 bit color depth;
When using standard AWG26 cable, the input transmission distance is up to 15 meters (1080P and below resolution);
Support most acquisition software, such as VLC, OBS, Amcap, etc .;
Support Windows, Android and MacOS;
Comply with USB video UVC specifications;
Conforms to USB audio UAC specifications;
No external power supply is required, so it is compact and easy to carry.
Product Specifications:
HDMI Resolution: Max input can support 3840×2160@30Hz / 4K
Video Output Resolution: Max output can be 1920×1080@30Hz
Video Input Format: 8 / 10 / 12-bit Deep Color
Video Output Mode: YUV / JPEG
Support Audio Format: L-PCM
Support AWG26 HDMI Standard Cable: input ≤15 meters, AWG26 HDMI standard cable.
Maximum Working Current: 0.4A / 5VDC
Operating temperature range: (-10 to + 55 ℃)
Dimension (L x W x H): 64x28x13 (mm)
Weight: 21.4g
Note:
Computer hardware configuration requirements
CPU: PC i5-3400 or above ；NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above NC NVIDIA GT735M or above
Run memory: 4G RAM
Packaging Includes:
1 * HDMI To USB2.0/3.0 Audio Video Capture Cards
