Description
REFURBISHED – SERVICED – RESTORED
FREE SHIPPING – 90 DAY WARRANTY
Product Description

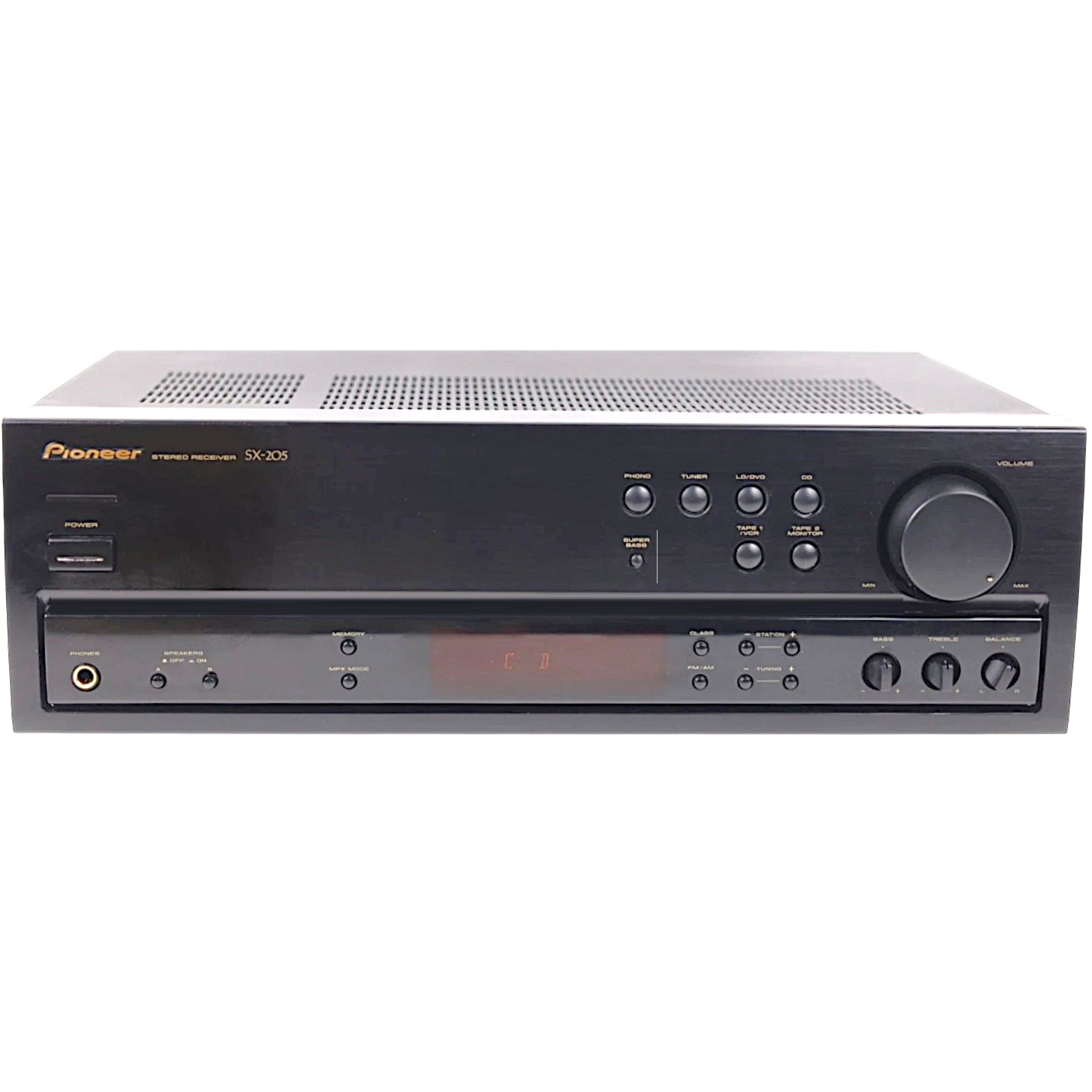

The Pioneer SX-205 is a powerful 2-channel stereo receiver designed for music lovers who want clean amplification, simple operation, and versatile connectivity. Delivering 100 watts per channel, the SX-205 features a built-in AM/FM tuner, dedicated phono input for turntables, dual speaker outputs, and multiple audio inputs for CD players, cassette decks, VCRs, DVD players, and modern streaming devices.
A great choice for vinyl enthusiasts, the SX-205 includes a dedicated phono stage and grounding terminal, allowing most standard turntables to connect directly without requiring an external preamp. Front-panel bass, treble, balance, and Super Bass controls provide flexible sound customization for any listening environment.
Unlike the SX-255R model covered in the same manual, the SX-205 does not include remote control functionality.
Key Features
- 100 Watts x 2 Channels
- Dedicated Phono Input for Turntables
- Built-In AM/FM Tuner
- Dual Speaker Outputs (A/B)
- Super Bass Enhancement
- Bass, Treble, and Balance Controls
- 30 Station Preset Memory
- Tape Monitor Function
- Headphone Output
- Multiple Audio Inputs
- Classic Pioneer Stereo Design
Inputs & Connections
Audio Inputs
- Phono
- CD
- LD/DVD
- Tape 1 / VCR
- Tape 2 Monitor
Outputs
- Tape 1 / VCR Output
- Tape 2 Output
- Headphone Output

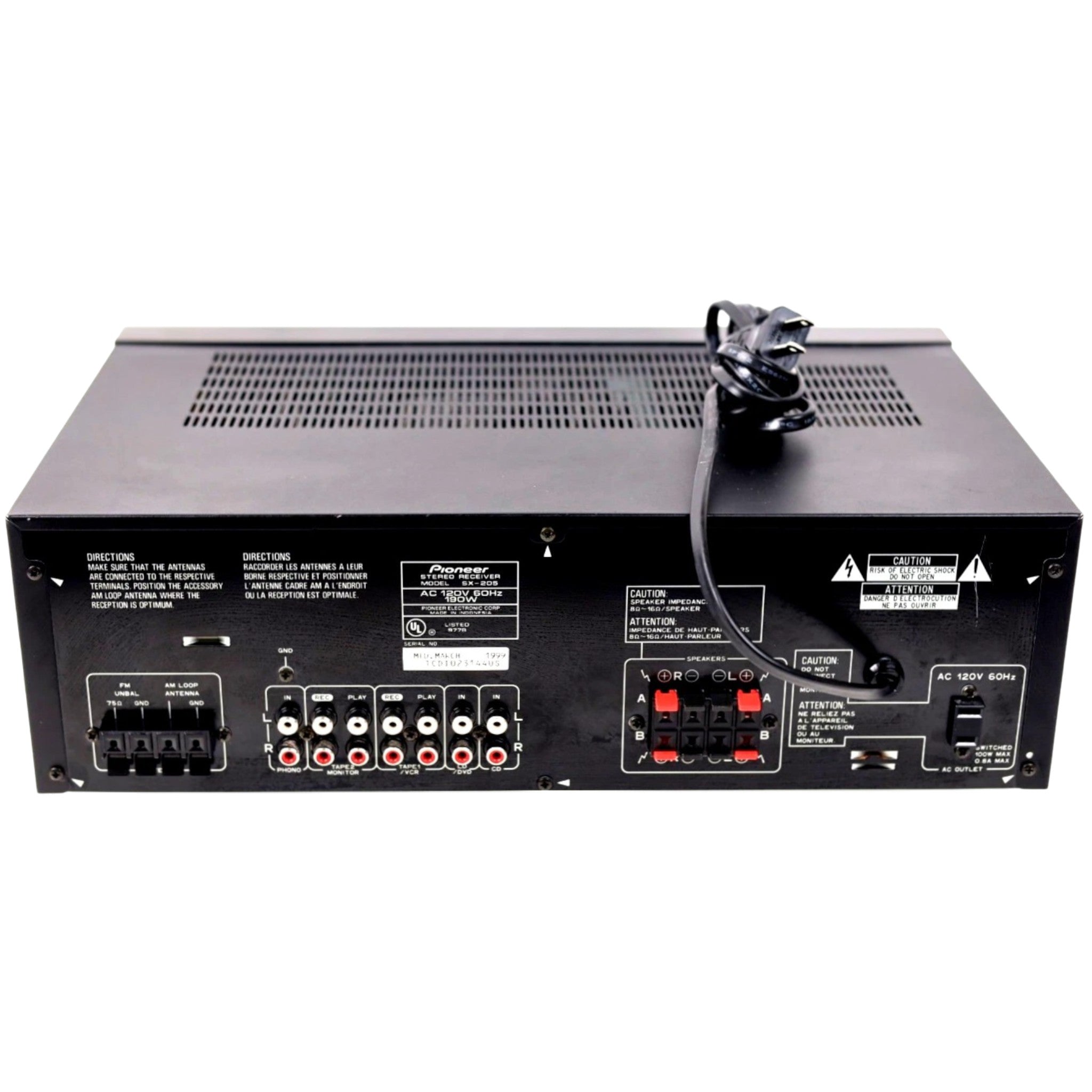

Additional Connections
- Speaker System A
- Speaker System B
- FM Antenna Input
- AM Antenna Input
- Turntable Ground Terminal
Audio Features
Phono Input
Connect most standard moving-magnet turntables directly to the receiver without requiring an external phono preamp.
Super Bass
Enhances low-frequency performance for fuller sound at lower listening levels.
Dual Speaker Outputs
Supports two pairs of speakers for flexible listening throughout your home.
Specifications
Power Output: 100 Watts x 2 Channels
Frequency Response: 10 Hz – 100 kHz
Total Harmonic Distortion: 0.09%
Signal-to-Noise Ratio:
- Phono: 72 dB
- CD/Tape/LD-DVD: 96 dB
AM/FM Tuner: Built-In
Preset Stations: 30
Speaker Outputs: A/B
Power Consumption: 160 Watts
Dimensions & Weight
Width: 16.5 in
Height: 5.7 in
Depth: 12.4 in
Weight: 15 lbs
Condition
Professionally refurbished, cleaned, and tested. Any worn components have been replaced to ensure both optimal performance and appearance.
Warranty
This product includes a 90-Day Warranty from the date of delivery. If your item experiences issues related to functionality during normal use, we will provide a replacement or refund.
What's in the Box
- Pioneer SX-205 Stereo Receiver
- Power Cable
- FM Antenna
- AM Loop Antenna
- User Instruction Manual
Q&A
Q: Can I connect a turntable directly to this receiver?
A: Yes. The SX-205 includes a dedicated phono input and grounding terminal for direct connection of most standard turntables.
Q: Can I connect a CD player, cassette deck, and streaming device at the same time?
A: Yes. Multiple audio inputs allow several audio sources to remain connected simultaneously.
Q: Can I connect two pairs of speakers?
A: Yes. The receiver supports Speaker A and Speaker B outputs.
Q: Does this receiver have Bluetooth?
A: No. Bluetooth is not built in, but a Bluetooth adapter can easily be connected through one of the audio inputs.
Q: Does this receiver include a remote control?
A: No. The SX-205 model does not have remote control functionality.
